Aperçu /Produits/Verrerie de laboratoire de la Science/Factory-made high-temperature-resistant transparent round-bottom quartz test tubes with stoppers

Factory-made high-temperature-resistant transparent round-bottom quartz test tubes with stoppers

1 pièce
MOQ
$2.00/pieces 1-49 pieces
Prix
Factory-made high-temperature-resistant transparent round-bottom quartz test tubes with stoppers
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Taper: Tube de quartz transparent
Application: Semi-conducteur, optique
Épaisseur: 1-100 mm
Forme: Rond
Service de traitement: Coup de poing, coupe
Nom de produit: Tube à essai de quartz
Matériel: Sio2
Sio2: SiO2> 99,99%
Densité: 2,2 g / cm3
Couleur: Éclair Transparent
Température de travail: 1100 ℃
Point de fusion: 1732℃
Port: Port Shanghai et Qindao
Informations de base
Lieu d'origine: Jiangsu, Chine
Nom de marque: ShengFan
Certification: ISO9001 ROHS
Numéro de modèle: QSP-1703
Conditions de paiement et expédition
Détails d'emballage: Bubble en plastique / feuille de mousse en polystyrène / carton / palette en bois
Délai de livraison: 10-15 jours
Conditions de paiement: L / C, T / T
Capacité d'approvisionnement: 10000 pièces / pièces par mois
Description de produit
High Transmittance Quartz Glass Tube High Transmission Protect Transparent For UV Light

Product Description

Shengfan Quartz tube characteristic

*Brand
shengfanquartz
*SIO2
99.99%
*Density
2.2(g/cm³)
*Degree of hardness moh’ scale
6.6
*Melting point
1732℃
* Working temperature
1100℃
*Annealing point
1180℃
*Softening point
1630℃



Density 2.2x103 kg/m3 Hardness 5.5 - 6.5 Mohs' Scale 570 KHN 100
Design Tensile Strength 4.8x107 Pa (N/m2) (7000 psi) Design Compressive Strength Greater than 1.1 x l09 Pa (160,000 psi)SMD 5730
Bulk Modulus 3.7x1010 Pa (5.3x106 psi) Rigidity Modulus 3.1x1010 Pa (4.5x106 psi)
Softening Point 1730°C Annealing Point 1215°C

Setting Information

Color
Transparent
Shape
Circular / Round
Standard
JGS1
Material
99.99% sio2
Diameter
1-800mm
Thickness
0.25-10mm
Application
Optics quartz windows
Density
 6.6
Light Transmittance
>92%
Hardness
Mose 6.5
Resistance Value
1000 times than ordinary glass


Product Details
1. SiO2> 99.99% ,high purity quartz tube. 2.Operating Temperature: 1250℃ SoftenTemperature: 1730℃. 3.Excellent visual and chemical performance . 4. without surface coating and infectant. 5. Health care and environmental protection. 6. Any dimension can be made. 7. CE.RoHs SGS approved.

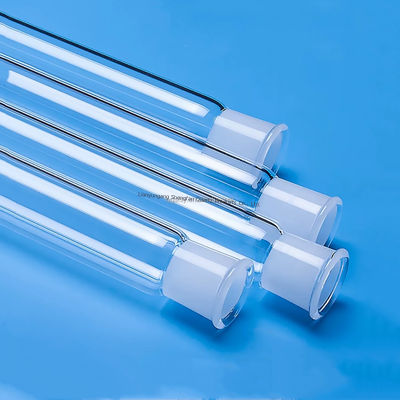

Factory-made high-temperature-resistant transparent round-bottom quartz test tubes with stoppers 0

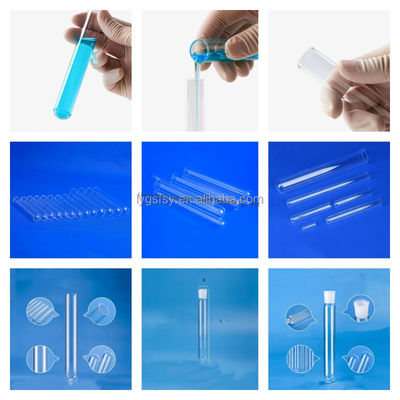

Details Images
Factory-made high-temperature-resistant transparent round-bottom quartz test tubes with stoppers 1Factory-made high-temperature-resistant transparent round-bottom quartz test tubes with stoppers 2

Factory-made high-temperature-resistant transparent round-bottom quartz test tubes with stoppers 3Factory-made high-temperature-resistant transparent round-bottom quartz test tubes with stoppers 4
applied range:
This product is mainly used in electric light source, electrical appliances (electric), semiconductor, optical communications, military industry, metallurgy, building materials, chemical, machinery, electricity, environmental protection and other field
Factory-made high-temperature-resistant transparent round-bottom quartz test tubes with stoppers 5

Instrument Manufacturing Technique
Factory-made high-temperature-resistant transparent round-bottom quartz test tubes with stoppers 6Factory-made high-temperature-resistant transparent round-bottom quartz test tubes with stoppers 7


pack

Factory-made high-temperature-resistant transparent round-bottom quartz test tubes with stoppers 8Factory-made high-temperature-resistant transparent round-bottom quartz test tubes with stoppers 9

Company Introduction
Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation. Covering an area of 1000 square meters,we now have over 30 employees,an annual sales figure exceeding USD 5.2 million. With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
Factory-made high-temperature-resistant transparent round-bottom quartz test tubes with stoppers 10

Our Services & Strength

The company adhere to the integrity of business, experience, reasonable price, quality assurance, to provide excellent after-sales service, we sincerely welcome customers to come to negotiate
FAQ
Q1. Can I have a sample order? A: Yes, we welcome sample order to test and check quality. Q2. What about the delivery time? A:Within 15 days after receiving deposit. Q3. Do you have any MOQ limit? A: Low MOQ, 1pc for sample checking is available Q4. How to proceed an order in your factory? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q5. How do you ship the goods and how long does it take to arrive? DHL, UPS, FedEx or TNT are optional for small order. It usually takes 3-5 days to arrive. Airline and sea shipping are also available.
